A Tee-Lock roof, part by part
The numbers below match the numbers in the picture. Tap the picture to see it bigger.
Showing Tee-Lock: a cap goes over each seam, then a seaming tool locks it. 2-3/8 in. seam, 18 in. wide. Pick a seam style below to change the picture.
Your installer provides these
- 1Rafters The wood frame that holds up the roof.
- 2Roof deck The wood boards the roof sits on.
- 3Ice and water barrier A sticky sheet that blocks leaks.
- 4Underlayment A second water layer under the panels.
Titan makes and supplies these
- 5Eave trim The metal edge that sends water off the bottom of the roof.
- 6Panel clips Hidden clips that hold the panels and let them move with heat and cold.
- 7Pancake screws Flat screws that hold the clips to the deck.
- 8Standing seam panels Long metal panels with raised seams that lock together.
- 9Rake trim The trim that closes the side edge of the roof.
- 10Vented ridge closure Lets warm air out at the peak.
- 11Ridge cap The metal cap that covers and seals the peak.

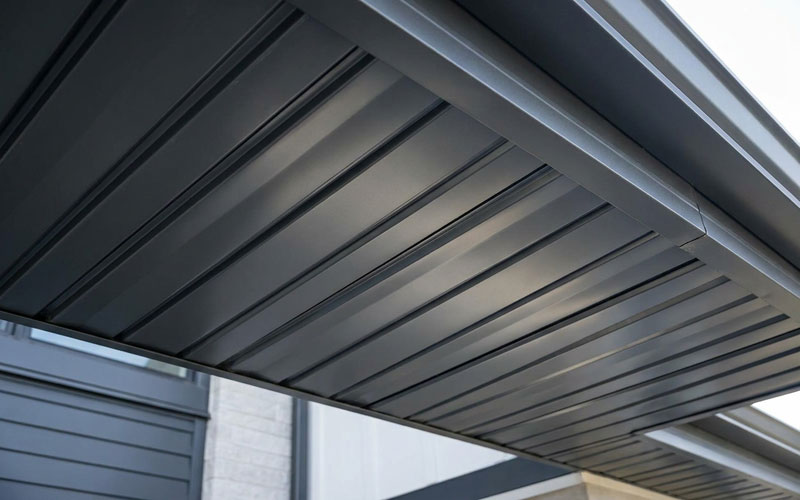

- 12Soffit vent Lets fresh air in under the eave.
- 13Gutter Catches the rain and carries it away from the house.
Standing Seam Profiles We Roll-Form
All three are concealed-fastener systems: no screws through the panel face, so there is nothing to back out, rust or leak. The right one depends on your roof slope, panel length and the look you want. Not sure? Send us the roof plan and we will recommend one. For gauges, finishes, pricing steps and on-site roll forming, see the full Dallas-Fort Worth standing seam page.
Cee-Lock (snap-lock)
- Snaps together over hidden clips, no seaming tool
- 1-1/2 in. seam; 16-1/2 in. or 11-1/2 in. wide
- Goes over solid roof decking
- Best for homes, porches and barndominiums
Tee-Lock (capped seam)
- A cap goes over the seam, then a seaming tool locks it in one pass
- 2-3/8 in. seam; 18 in. wide
- Striated or smooth finish
- Best for commercial, architectural and long runs
Standing Seam Roofing
Titan Sheet Metal provides premium standing seam metal roofing solutions that combine durability, performance, and a clean, modern appearance. We utilize industry-leading equipment from Berridge Manufacturing and New Tech Machinery to produce high-quality metal roofing panels with precision and consistency. Whether you're a contractor, builder, or homeowner, we offer flexible service options to meet your project needs, including on-site roll forming, delivery directly to your jobsite, or convenient pickup from our facility. Our standing seam roofing systems are designed to deliver long-lasting protection, energy efficiency, and exceptional curb appeal for residential, commercial, and architectural applications.
